Vector network interfaces

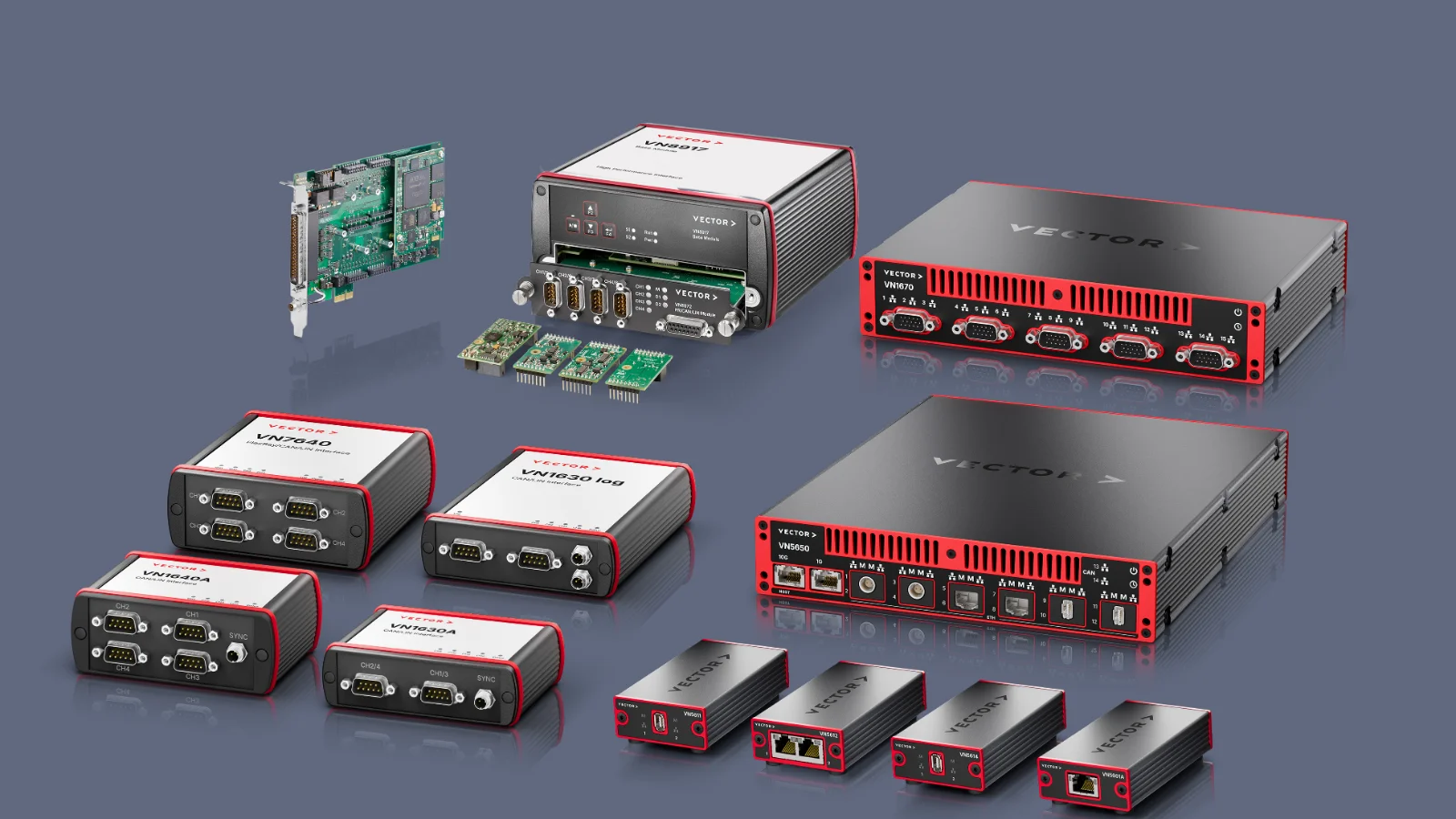

Hardware Network Interfaces

Software tools used to develop, simulate, test and maintain distributed systems require powerful and flexible hardware interfaces and logging solutions.

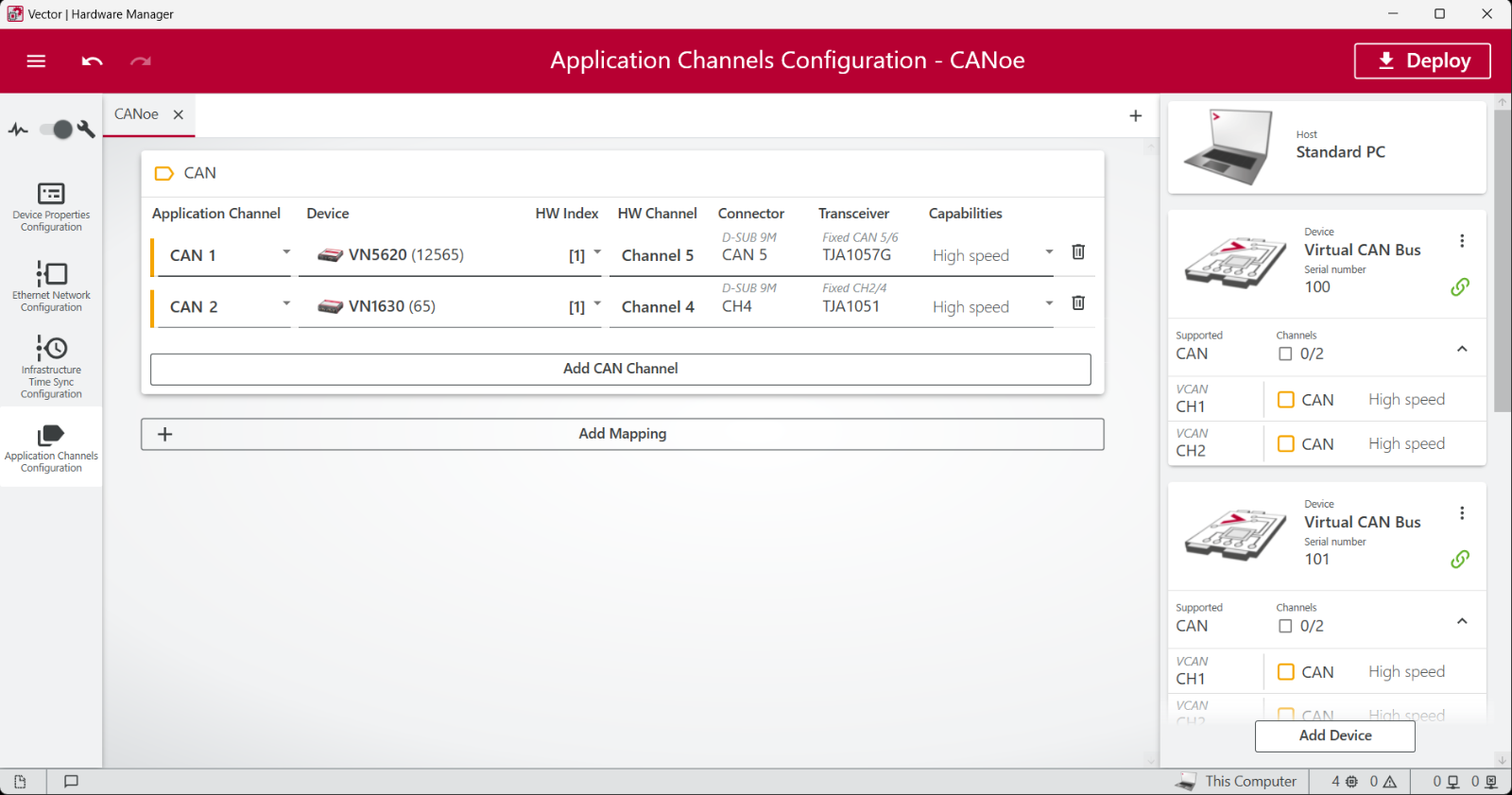

Vector offers you interfaces for CAN, LIN, J1708, Ethernet/IP, FlexRay, and MOST as well as driver software and programming interfaces for use with Vector software tools and in customer-specific solutions.

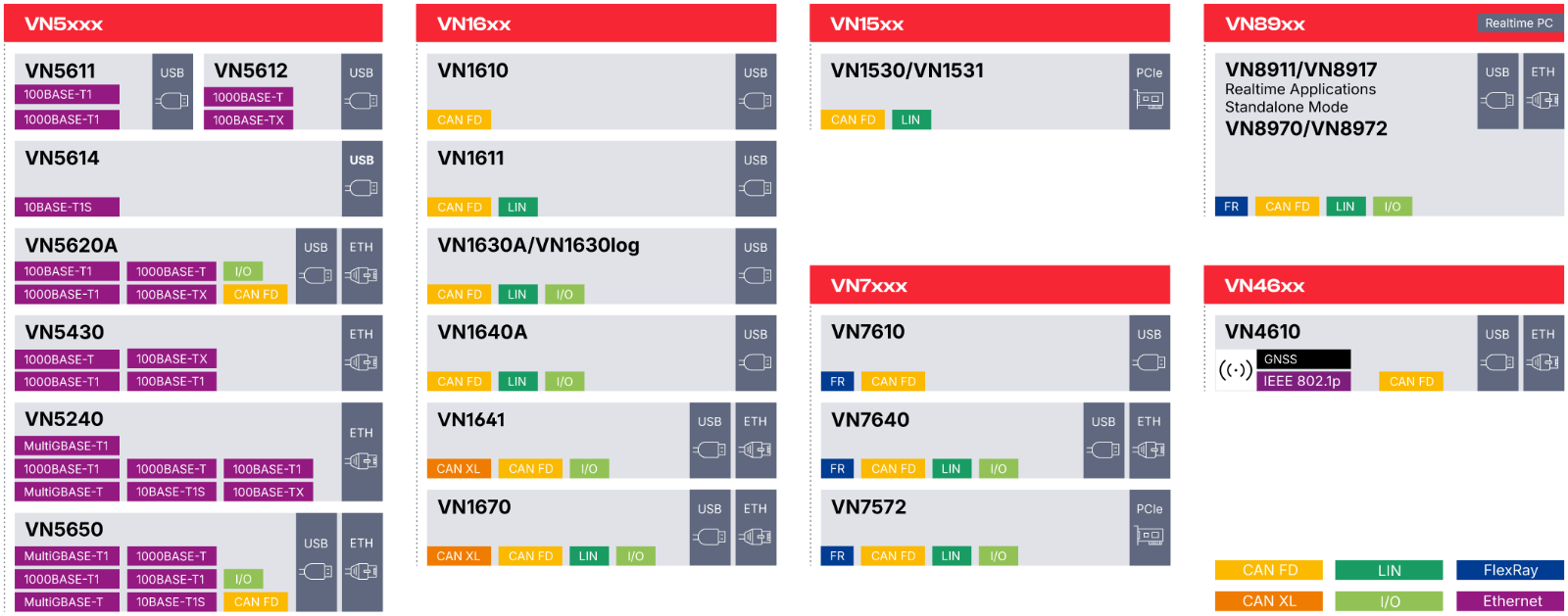

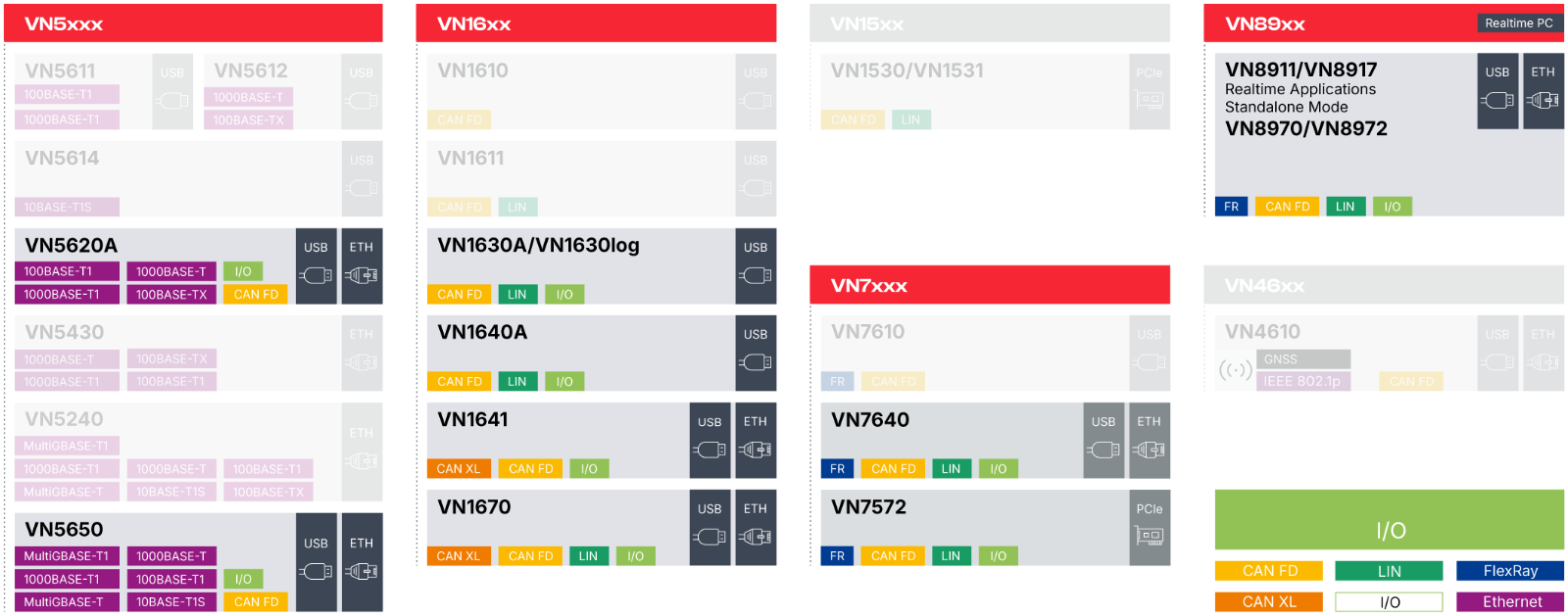

Bus System Interface PC Connection

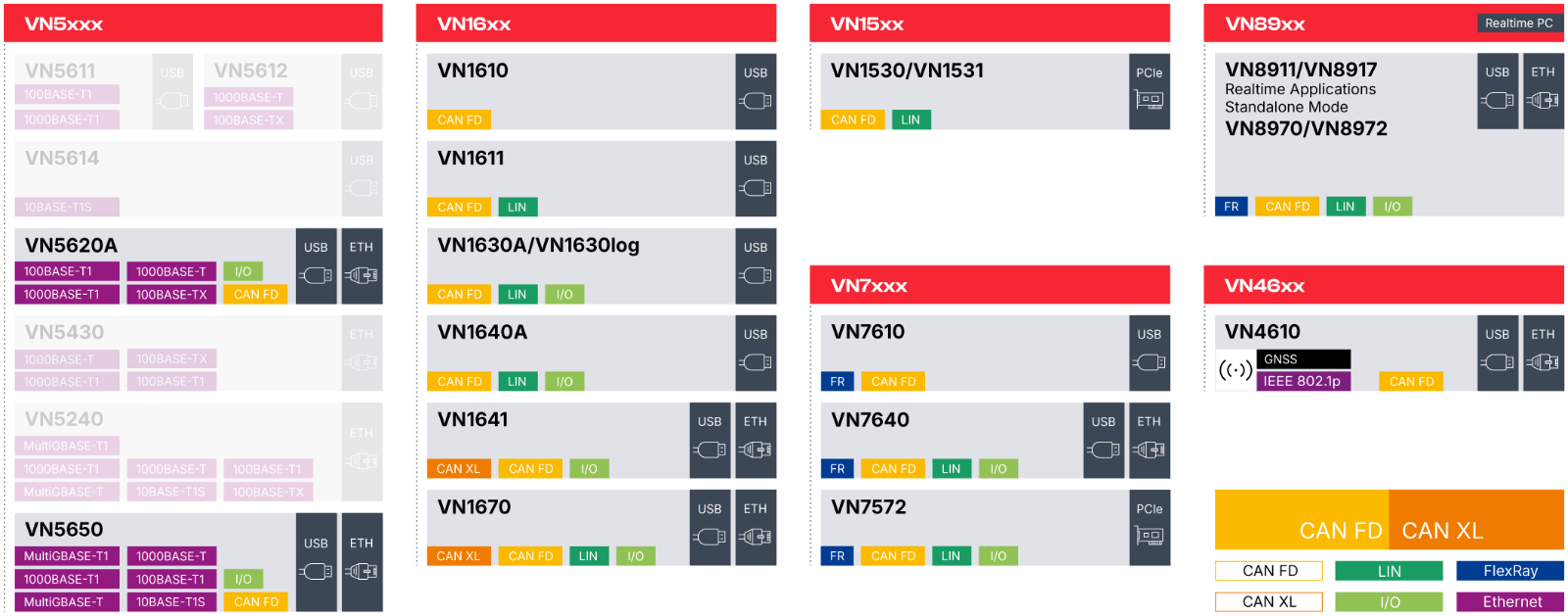

CAN, CAN FD, LIN and J1708:
Highlights and advantages ...
  • Higher data throughput (up to 80,000 messages per second)
  • Precise time stamps
  • Highly flexible with large selection of interchangeable bus transceivers
  • Message preprocessing on the card reduces PC loading
  • No data losses, even with 1 Mbit burst loading
  • FPGA update possible
  • Time synchronization with other Vector interfaces is possible via external connection (party line)
  • ExpressCard interface CANcardXLe and TWINcabs make up to 4 channels available
  • The VN8900 interface is a high-performance real-time platform when used in combination with the CANoe or CANalyzer tool. Its many uses range from MiniHIL applications to system simulations with Simulink, rest-of-bus simulations as well as gateway implementations and test runs.
Special CAN functions:
  • Detect and generate error frames
  • Precisely measure bus load
  • Listen on the CAN bus without affecting it (Silent Mode)
  • Send and receive data and remote frames

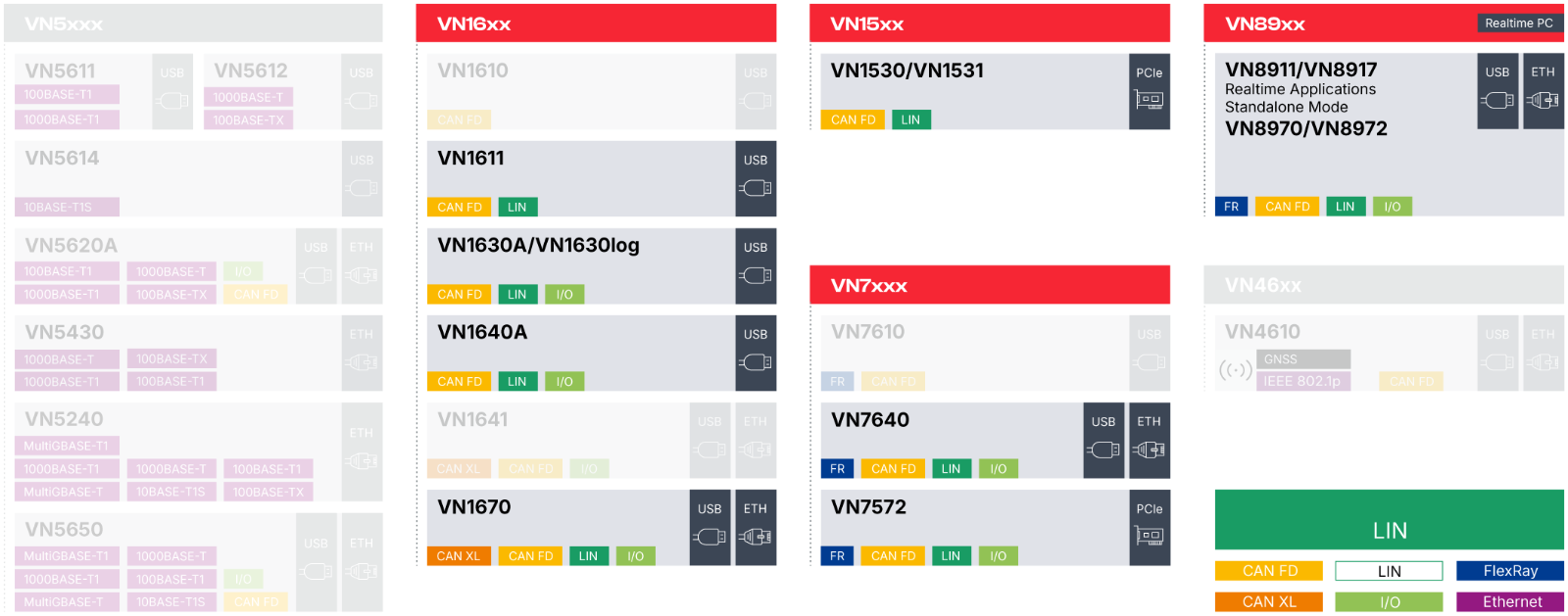

Special LIN functions:
  • Conformity tests per LIN2.1 specification (CANcardXLe)
  • Detect and generate sending errors, synchronization errors, checksum errors and other protocol violations
  • Listen on the LIN bus without affecting it
  • Send and receive headers and entire messages
  • Measure baudrate in header and response
  • Measure frame length
  • Detect the checksum model
  • Disturb the header and slave response
VN8900
VN1600
VN8810
CANcardXLe
CANcardXL
CANboardXL
CANboardXL PCIe
CANboardXL pxi
USB (RT PC)
USB
USB (OBD)
ExpressCard
PCMCIA
PCI
PCIe
PXI

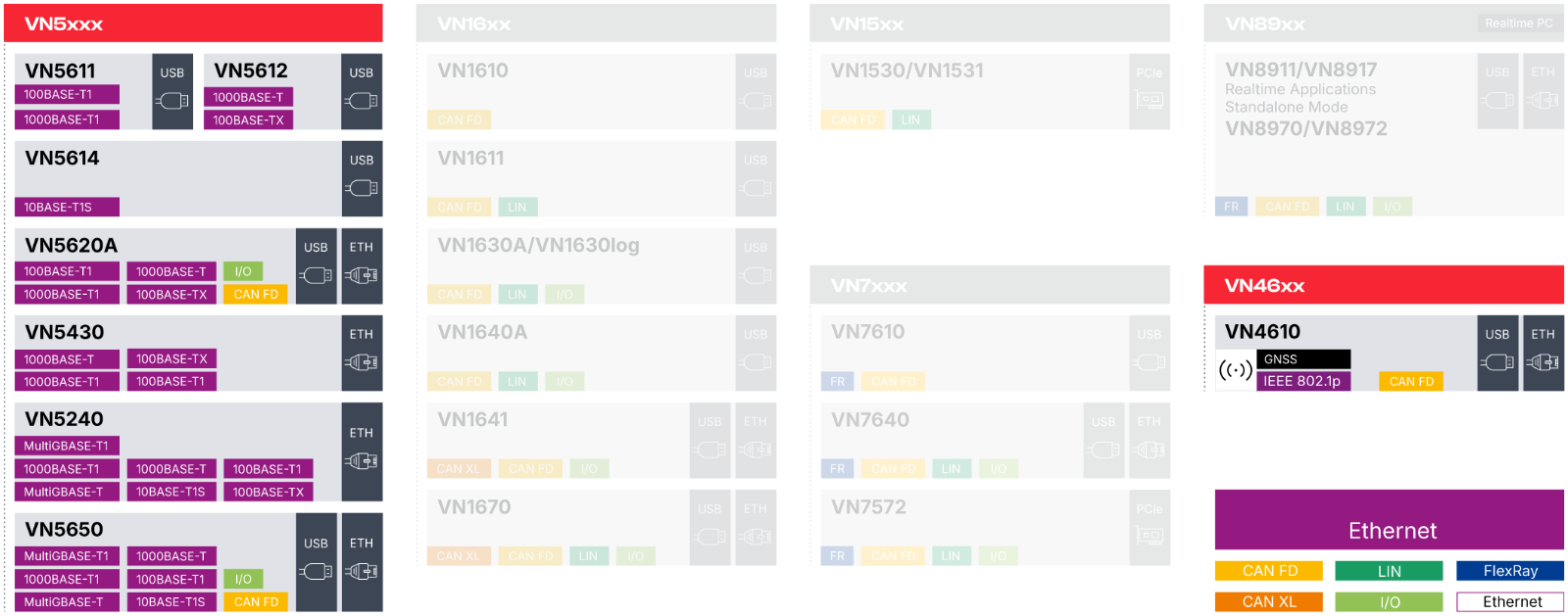

Ethernet and CAN / CAN FD:
Highlights and advantages ...
  • Two independent Ethernet channels; for standard Ethernet (100Mbit/1000Mbit) or BroadR-Reach (100Mbit)
  • Two CAN highspeed channels
  • Precise time stamps as well as synchronization between multiple devices and other bus systems (CAN, LIN, FlexRay, MOST)
  • Ethernet monitoring
  • High flexibility by reconfigurable FPGA hardware architecture. Prepared and ready for CAN FD.
VN5610 USB

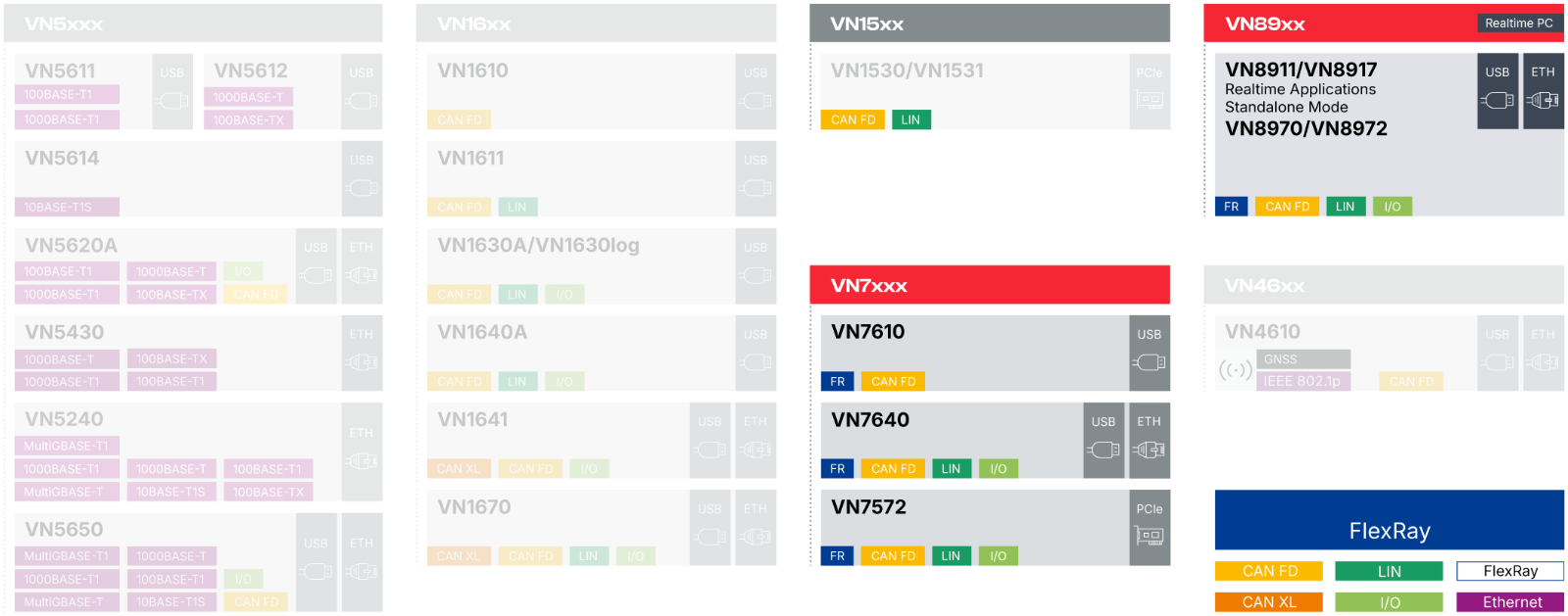

FlexRay and CAN:
Highlights and advantages ...
  • Detailed analysis of the FlexRay communication by an FPGA-based communication controller
  • Extensive networks can be simulated thanks to 2MB TX memory (simultaneous configuration of over 1000 TX messages)*
  • Cold start of the FlexRay cluster without additional network nodes
  • Analysis of network startup by independent monitoring unit
  • 2 FlexRay channels (Channel A and B)
  • Updating to latest FlexRay specification by FPGA update
  • Port for external time synchronization
*Only VN7600

Special CAN functions of the VN7600:
  • Detect and generate error frames
  • Precisely measure bus load
  • Listen on the CAN bus without affecting it (silent mode)
  • Send and receive data and remote frames

VN8900
VN7572, VN7600, VN7610

USB (RT PC)
PCIe
USB

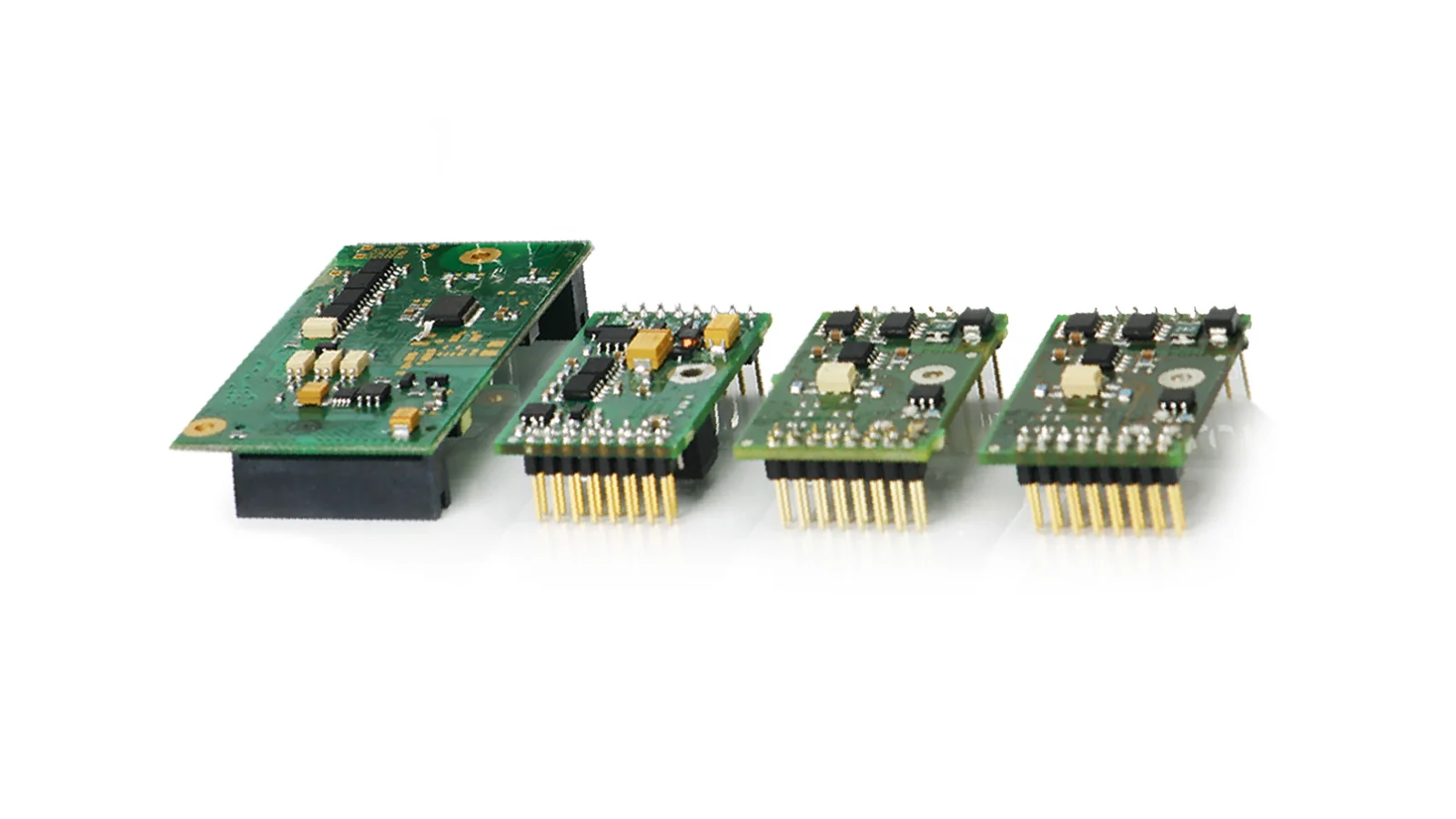

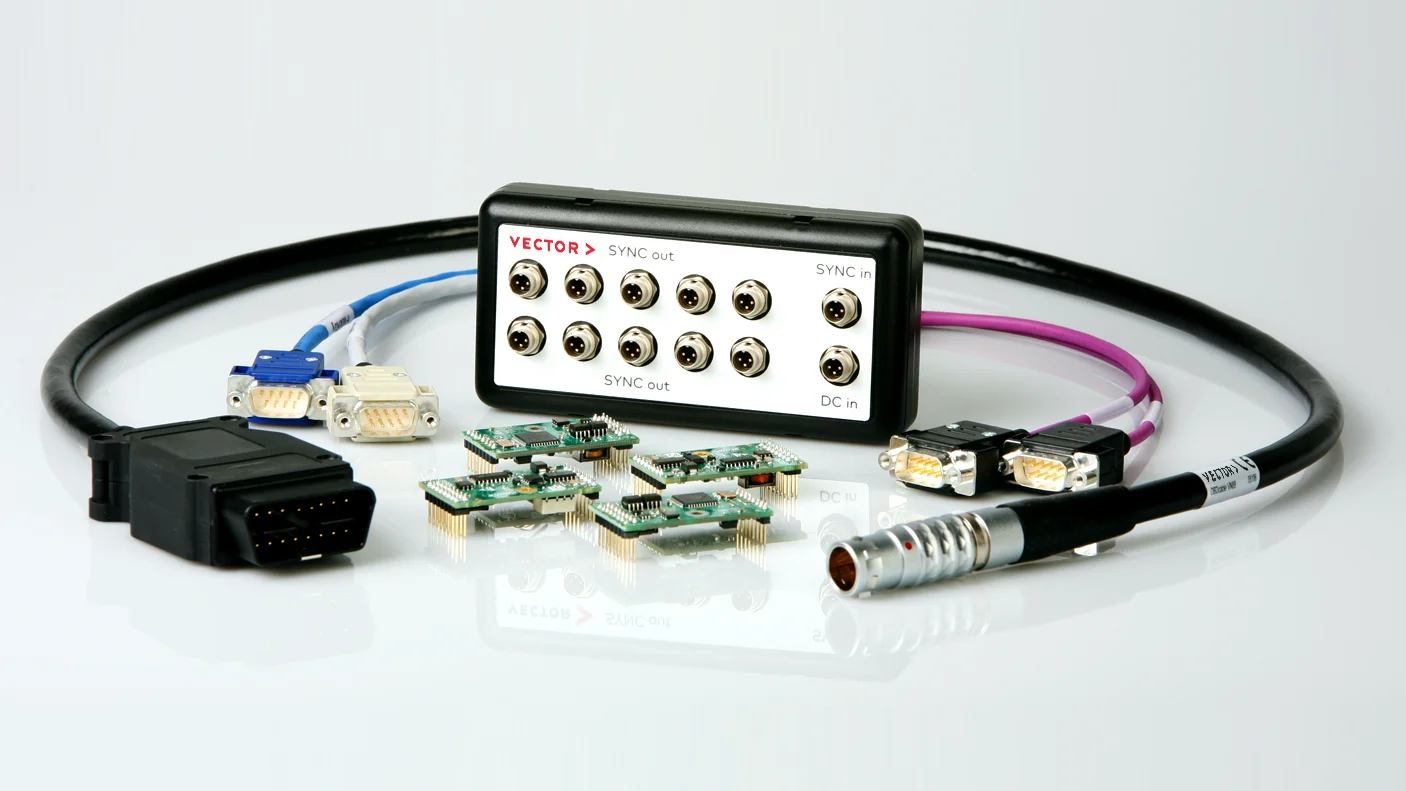

Bus Transceiver for CAN, LIN, J1708 and FlexRay
MOST:
Highlights and advantages ...
  • Supports all MOST bus channels (control messages, asynchronous and Ethernet packets (only VN2640) and synchronous channels) with high bandwidth
  • Send and receive asynchronous packets of any length
  • Control and asynchronous spy lets you log all messages
  • Simultaneous operation as MOST node and MOST Spy
  • VN2640: MOST ECL interface isolated
  • One optical S/PDIF input and one output, 16 bit stereo, with sample rate converter (switchable)
  • Temperature range: –40 °C to +60 °C
  • Large voltage range (startup: 8 V to 50 V, operating: 5 V to 50 V)
  • USB 2.0 interface
  • Precise time stamps (1 μs) and low reaction times
  • MOST Limited Physical Compliance certified as well as MOST150 compliance certified
  • Fully compatible with the XL interface product line and XL Driver Library
VN2610(MOST25)
VN2640(MOST150)
USB
USB
ARINC 429 (Avionic Systems):
Highlights and advantages...
  • 4 ARINC 429 TX and 4 ARINC 429 RX channels
  • Supports High-Speed and Low-Speed communication
  • Host interface via USB 2.0
  • Does not require any external power supply
  • Precise time stamps
  • Synchronization with multiple devices and other bus systems
    (e.g. CAN, Ethernet, AFDX®)
  • Analog/digital IO

VN0601

USB
